LE-M3TB

Overview

MATEnet connector is a modular connector system for Ethernet such as 100BASE-T1.

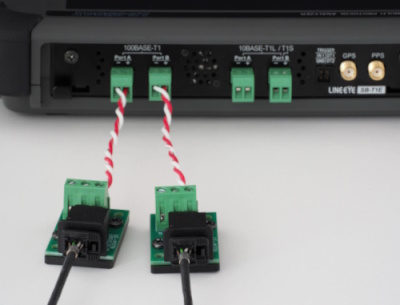

When making a branch connection to the analyzer's measurement terminal block, use two LE-M3TBs.
>> LE-M3TB instruction manual

■Specifications

Model number	LE-M3TB
Connector	MATEnet connector 2304372-1 (TE Connectivity) equivalent
Terminal block	3 pole terminal Applicable wire AWG24 to 14 (Single wire max. 2.5mm2 Twisted wire max. 1.5mm2) Wire sheath stripping allowance 5mm
Size/mass	25(W)×37(D)×19(H) mm Approx. 15g
Applicable model	LE-8500X-SE / LE-8500XR-SE / SB-T1E
